產品中心 礦用防爆燈 礦用隔爆型支架燈系列 DGC35/127L(A)礦用隔爆型LED支架燈
|
產品型號 |
DGC35/127L(A) |
|
防爆標志 |
Ex db| Mb |
|
額定電壓 |
AC85-265V |
|
防護等級 |
IP66 |
|
反腐等級 |
WF2 |
|
進線口螺紋 |
M26X1.5 |
|
引入電纜 |
Φ10-16mm |
|
工作溫度 |
-20°c-40°c |
|

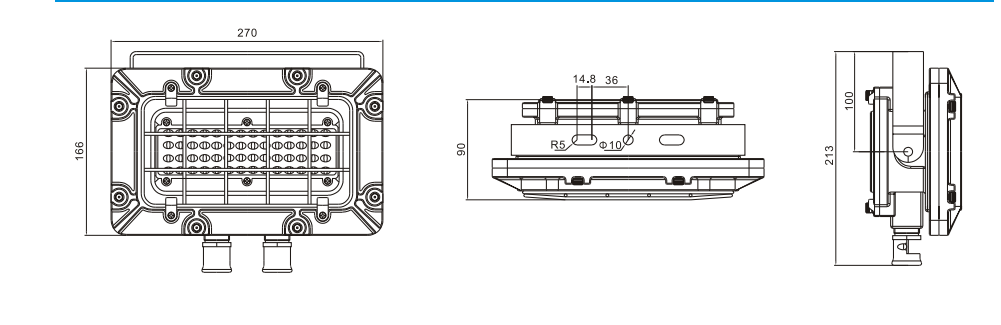

外形尺寸 |
270×166×90mm |
|
凈重 |
8.5kg |
|
數量 |
2pcs/箱 |
|
執行標準 |
GB/T3836.1-2021 GB/T3836.2-2021 MT221-2005 |
|
|
|
|
|
|
|
|
|
|
產品型號 |
|
DGC35/127L(A) |
|
DGC36/127L(A) |
|
DGC37/127L(A) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
光源 |
|
LED |
|
LED |
|
LED |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
光通量 |
|
4200LM |
|
4320LM |
|
4440LM |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
額定功率 |
|
35W |
|
36W |
|
37W |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
色溫 |
|
6000-6500K |
|
6000-6500K |
|
6000-6500K |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
光照度 |
|
50LX |
|
60LX |
|
65LX |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
