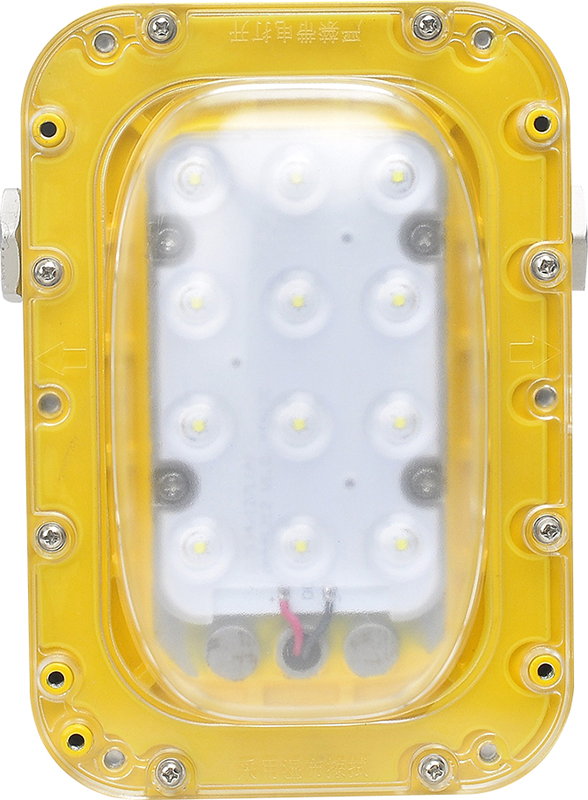

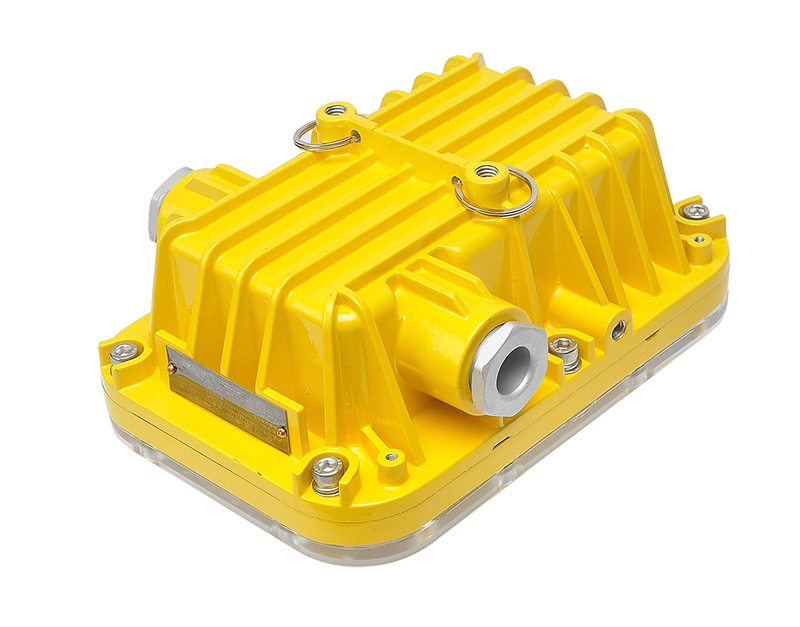

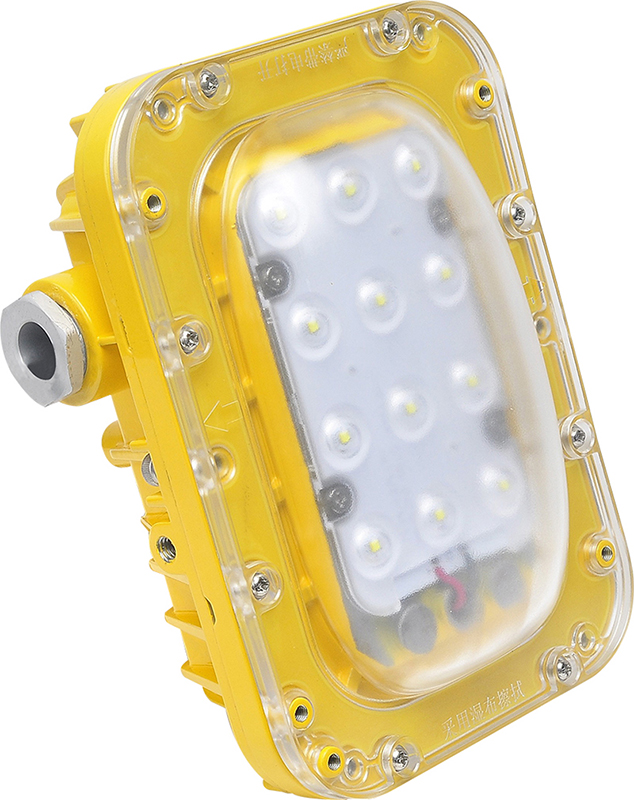

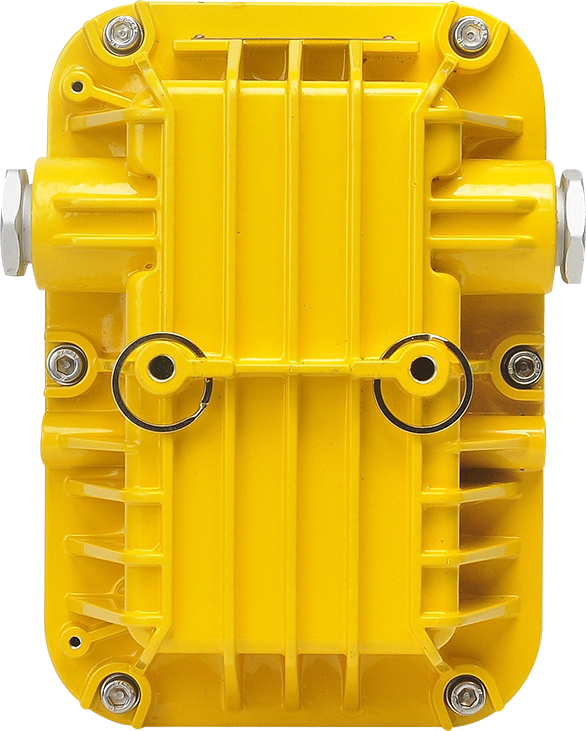

產品中心 礦用防爆燈 礦用隔爆兼本質安全型LED巷道燈系列 DJS34/127L（A）礦用隔爆兼本質安全型LED巷道燈
|
產品型號 |
DJS34/127L(A) |
|
防爆標志 |
Ex db[IB]| Mb |
|
額定電壓 |
AC85-265V |
|
防護等級 |
IP66 |
|
反腐等級 |
WF2 |
|
進線口螺紋 |
G3/4” |
|
引入電纜 |
M26X1.5mm |
|
工作溫度 |
-20°c-40°c |
|
外形尺寸 |
211X173X145mm |
|
凈重 |
2.5kg |
|
數量 |
6pcs/箱 |
|
執行標準 |
GB/T3836.1-2021 GB/T3836.2-2021 GB/T3836.4-2021 MT221-2005 |
|
|
|
|
|
|
|
|
|
|
|
產品型號 |
|
DJS34/127LX(A) |
|
DJS36/127L(A) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
光源 |
|
LED |
|
LED |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
光通量 |
|
374LM |
|
3960LM |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
額定功率 |
|
34W |
|
36W |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
色溫 |
|
6000-6500K |
|
6000-6500K |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
光照度 |
|
68LX |
|
72LX |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
