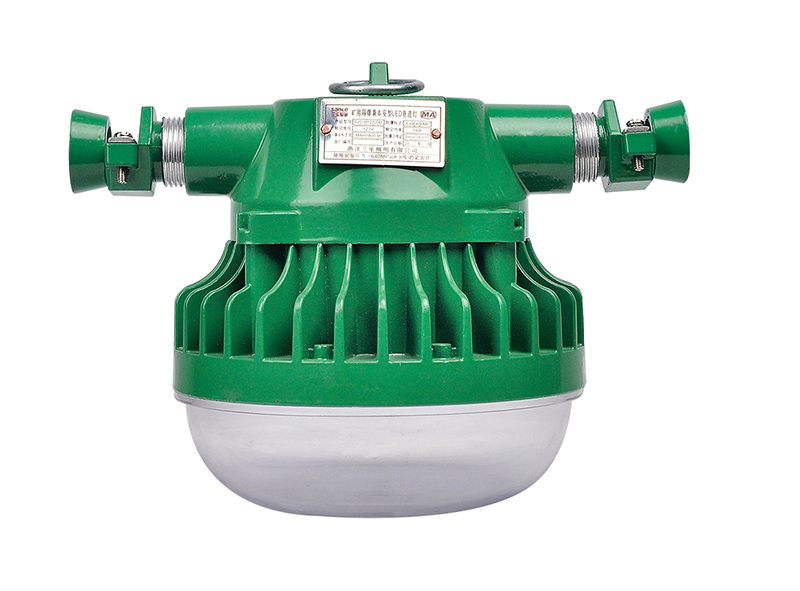

產品中心 礦用防爆燈 礦用隔爆兼本質安全型LED巷道燈系列 DJS18/127L（A）礦用隔爆兼本質安全型LED巷道燈
|
產品型號 |
DJS24/127L(A) |
|
防爆標志 |
Ex db[IB]| Mb |
|
額定電壓 |
AC85-265V |
|
防護等級 |
IP66 |
|
反腐等級 |
WF2 |
|
進線口螺紋 |
M30X1.5 |
|
引入電纜 |
Φ10-16mm |
|
工作溫度 |
-20°c-40°c |
|
外形尺寸 |
252×290X250mm |
|
凈重 |
1.6kg |
|
數量 |
8pcs/箱 |
|
執行標準 |
GB/T3836.1-2021 GB/T3836.2-2021 GB/T3836.4-2021 MT221-2005 |
|
|
|
|
|
|
|
|
|
|
|
產品型號 |
|
DJS24/127LX(A) |
|
DJS36/127L(A) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
光源 |
|
LED |
|
LED |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
光通量 |
|
2640LM |
|
3960LM |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
額定功率 |
|
24W |
|
36W |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
色溫 |
|
6000-6500K |
|
6000-6500K |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
光照度 |
|
40LX |
|
65LX |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
