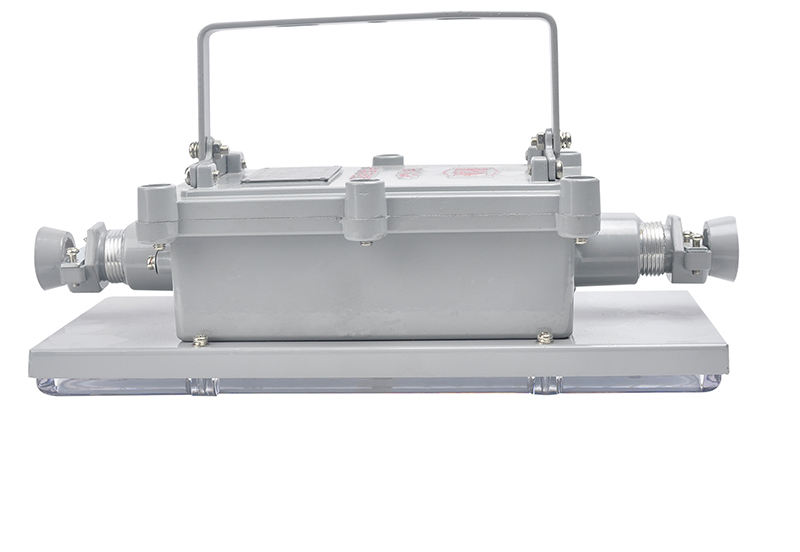

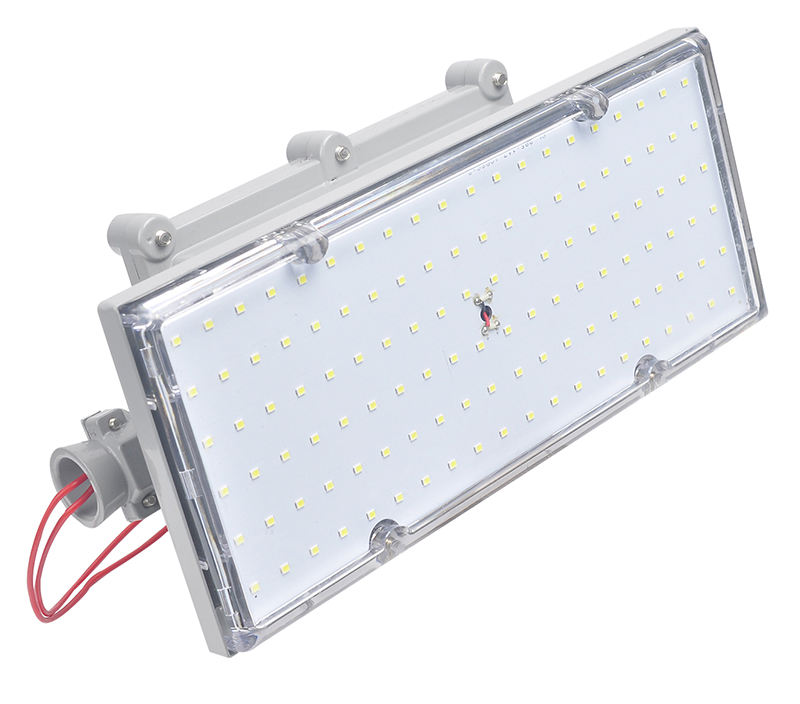

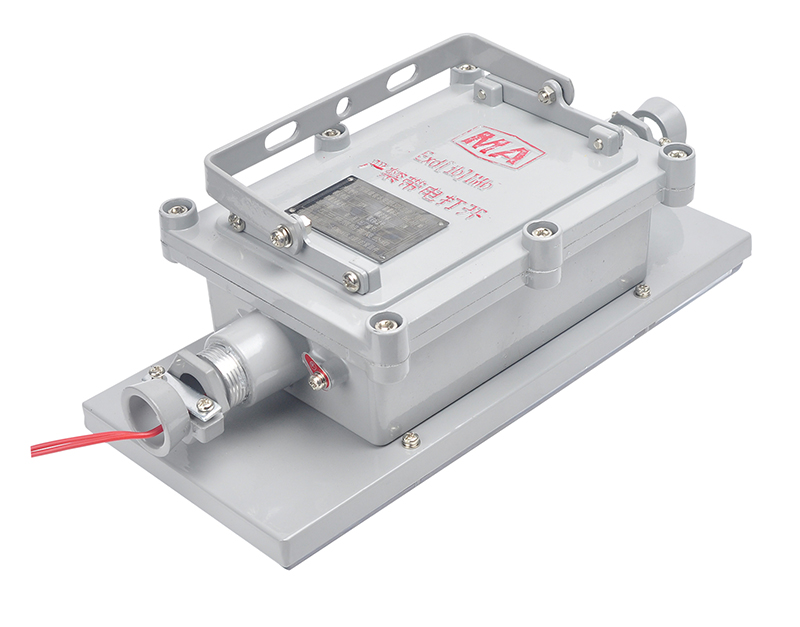

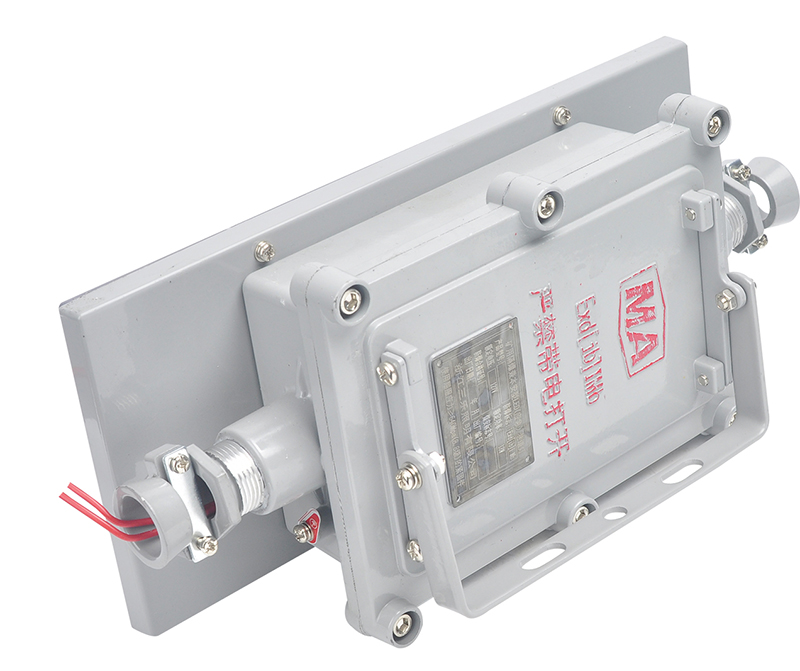

產品中心 礦用防爆燈 礦用隔爆型應急燈系列 DJS19/127LJ(A)礦用隔爆兼本安型LED應急燈
|
產品型號 |
DGS19/127L(A) |
|
防爆標志 |
Ex db| Mb |
|
額定電壓 |
AC85-265V |
|
防護等級 |
IP66 |
|
反腐等級 |
WF2 |
|
進線口螺紋 |
M26X1.5
|
|
引入電纜 |
Φ10-14mm |
|
工作溫度 |
-20°c-40°c |
|
外形尺寸 |
300×132X152mm |
|
凈重 |
2.7kg |
|
數量 |
4pcs/箱 |
|
執行標準 |
GB/T3836.1-2021 GB/T3836.2-2021 MT221-2005 |
|
|
|
|
|
|
|
|
|
|
產品型號 |
|
DGS10/127L(A) |
|
DGS19/127L(A) |
|
DGS18/127L(A) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
光源 |
|
LED |
|
LED |
|
LED |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
光通量 |
|
1200LM |
|
2280LM |
|
2160LM |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
額定功率 |
|
10W |
|
19W |
|
18W |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
色溫 |
|
6000-6500K |
|
6000-6500K |
|
6000-6500K |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
光照度 |
|
20LX |
|
38LX |
|
36LX |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
