產品中心 礦用防爆燈 礦用隔爆型巷道燈系列 DGS40/127L(A)礦用隔爆型LED巷道燈
|
產品型號 |
DGS40/127L(A) |
|
防爆標志 |
Ex db| Mb |
|
額定電壓 |
AC85-265V |
|
防護等級 |
IP66 |
|
反腐等級 |
WF2 |
|
進線口螺紋 |
M26X1.5 |
|
引入電纜 |
Φ8-14mm |
|
工作溫度 |
-20°c-40°c |
|

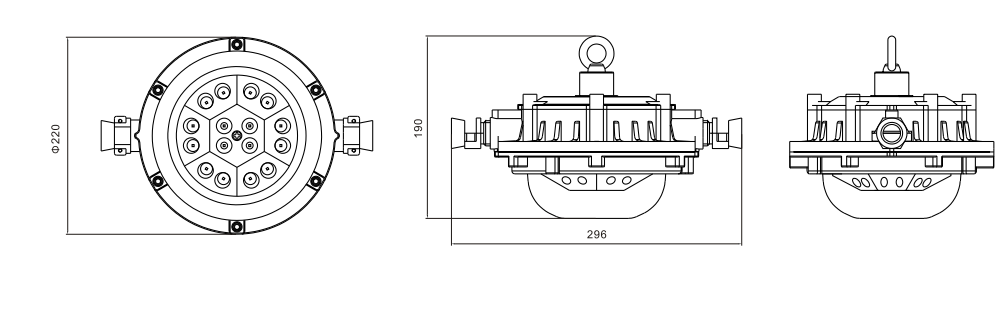

外形尺寸 |
296X190X220mm |
|
凈重 |
3.1kg |
|
數量 |
4pcs/箱 |
|
執行標準 |
GB/T3836.1-2021 GB/T3836.2-2021 MT221-2005 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
產品型號 |
|
DGS30/127L(A) |
|
DGS36/127L(A) |
|
DGS40/127L(A) |
|
DGS45/127L(A) |
DGS48/127L(A) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
光源 |
|
LED |
|
LED |
|
LED |
|
LED |
LED |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
光通量 |
|
3300LM |
|
3960LM |
|
4400LM |
|
4950LM |
5280LM |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
額定功率 |
|
30W |
|
36W |
|
40W |
|
45W |
48W |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
色溫 |
|
6000-6500K |
|
6000-6500K |
|
6000-6500K |
|
6000-6500K |
6000-6500K |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
光照度 |
|
60LX |
|
72LX |
|
80LX |
|
90LX |
96LX |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
