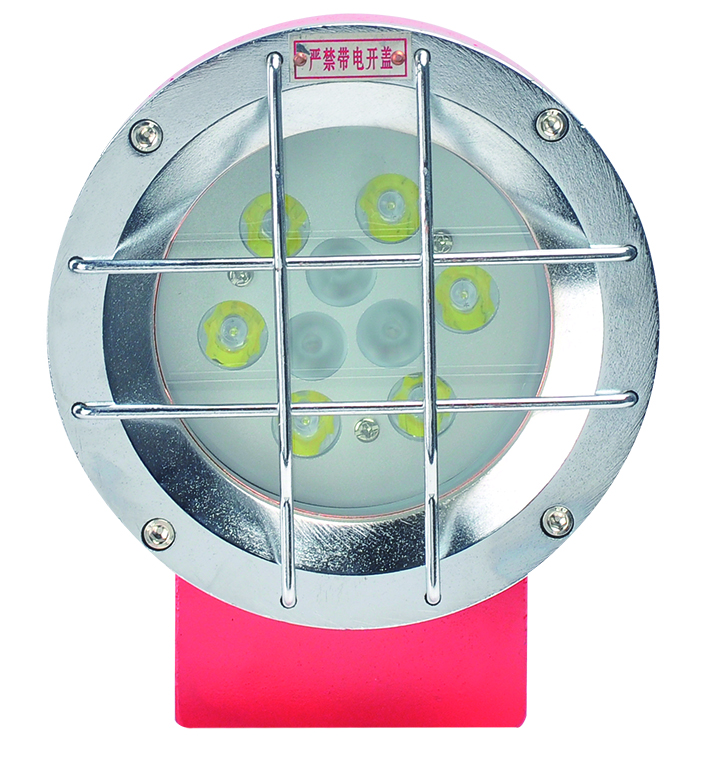

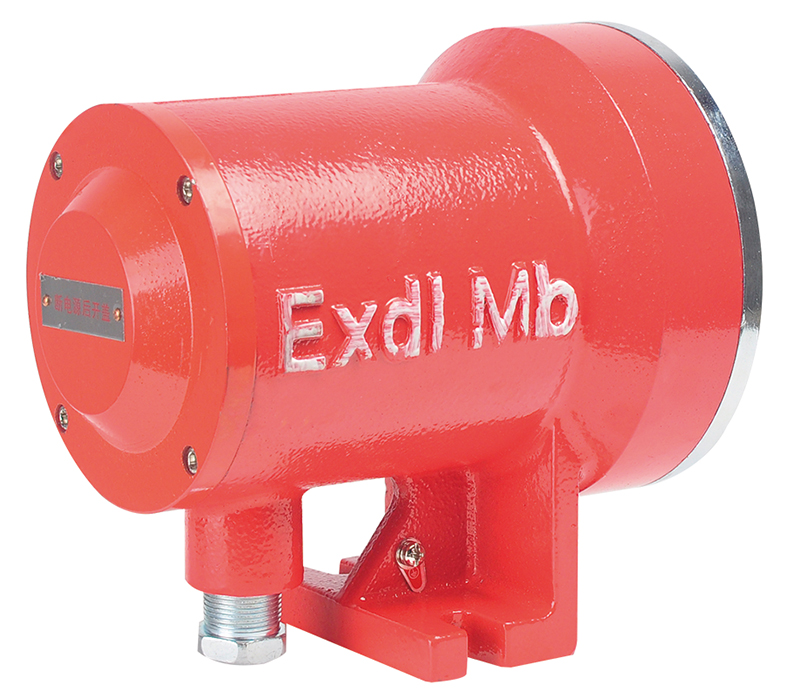

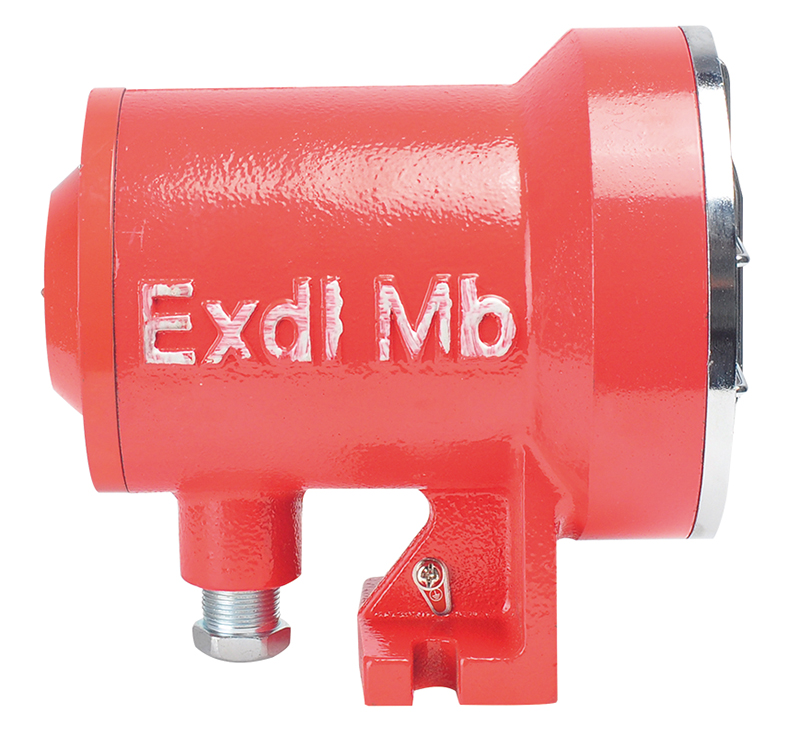

產品中心 礦用防爆燈 礦用隔爆型機車燈系列 DGY18/24L(A)礦用隔爆型LED機車燈
|
產品型號 |
DGY18/24L(A) |
|
防爆標志 |
Ex db| Mb |
|
額定電壓 |
DC-AC20-40V,60-260V |
|
防護等級 |
IP66 |
|
反腐等級 |
WF2 |
|
進線口螺紋 |
M24x1.5x2 |
|
引入電纜 |
Φ10-14mm |
|
工作溫度 |
-20°c-40°c |
|

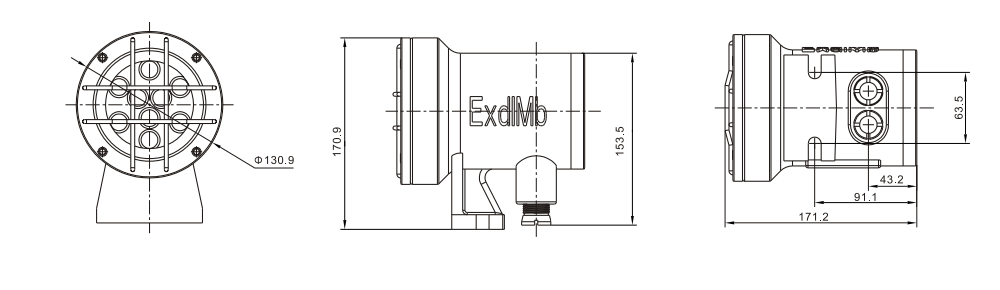

外形尺寸 |
Φ171×171×131mm |
|
凈重 |
6.3kg |
|
數(shù)量 |
2pcs/箱 |
|
執(zhí)行標準 |
GB/T3836.1-2021 GB/T3836.2-2021 MT221-2005 |
|
|
產品型號 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
DGY12/55L(A) |
|
DGY18/24L(A) |
|
DGY18/36L(A) |
|
DGY18/48L(A) |
DGY18/127L(A) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
光源 |
|
LED |
|
LED |
|
LED |
|
LED |
LED |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
光通量 |
|
1320LM |
|
1980LM |
|
1980LM |
|
1980LM |
1980LM |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
額定功率 |
|
12W |
|
18W |
|
18W |
|
18W |
18W |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
色溫 |
|
6000-6500K |
|
6000-6500K |
|
6000-6500K |
|
6000-6500K |
6000-6500K |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
光照度 |
|
3LX |
|
3LX |
|
3LX |
|
3LX |
3LX |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
